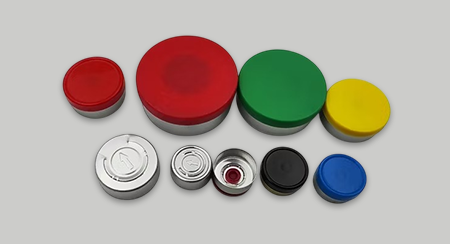

Aluminium Vial Seals | Atom Industries

Size	External Dia of Vial Neck	Internal Dia of Seal	Dia of Perforation on Seal	Height of Seal
in mm	H	D	d	H
11	5.6 ± 0.2	11.10 ± 0.1	5.30 ± 0.2	5.90 ±0.2
13	7.1 ± 0.2	13.50 ± 0.1	6.00 ± 0.2	7.20 ± 0.2
20	7.4 ± 0.2	20.40 ± 0.1	10.11 ± 0.2	7.60 ± 0.2
30	9.6 ± 0.2	30.20 ± 0.2	14.60 ± 0.2	10.00 ± 0.2
32	9.3 ± 0.2	32.20 ± 0.2	21.80 ± 0.2	9.60 ± 0.2
33	12.8 ± 0.2	33.20 ± 0.2	20.25 ± 0.2	13.00 ± 0.2
